Basic Functions

• Key Programming: Programs transponder keys, remote keyless entry, and proximity/smart keys for a wide range of vehicles.
• Remote Programming: Programs OEM and aftermarket remote controls.
• Vehicle Diagnostics: Performs basic diagnostic functions related to immobilizer systems.
• PIN Code Reading: Reads vehicle security codes required for programming on supported models.
• Software Updates: Supports real-time software updates via Wi-Fi or PC for module upgrades.
• No Dongles Required: Integrated security with no need for external dongles or smartcards.
• Connectivity: Wi-Fi and Bluetooth for seamless updates and accessory integration.
• Database Access: Built-in Info Quest vehicle database (5,000+ vehicles) for quick vehicle lookup and procedures.

• Processor: 1.8 GHz Quad-Core ARM Cortex-A53
• Operating System: Android OS – Custom diagnostic environment
• Display: 8-inch Capacitive Touchscreen, 1280 x 800 resolution
• Memory: 2GB RAM 16GB Internal Flash Storage Expandable via SD card slot
• Connectivity: Wi-Fi (802.11 b/g/n) Bluetooth 4.0 USB 2.0 OBD-II direct port connection RJ45 Ethernet (optional for workshop network)
• Battery: Rechargeable 3.7V Lithium-ion Up to 4 hours of active use Charging via 12V power cable or dock
• Audio/Visual: Built-in speaker LED status indicators Audible alerts
• Construction: Rugged ABS plastic body with rubberized corners for shock absorption Anti-glare screen coating VESA-compatible rear mount holes
• Dimensions: 9.8 in x 6.7 in x 1.5 in (25 cm x 17 cm x 3.8 cm)
• Weight: 38 oz (approx. 2.4 lbs)

• USB Cable
• AC/DC power supply unit
• OBD Cable
• Mains Cable

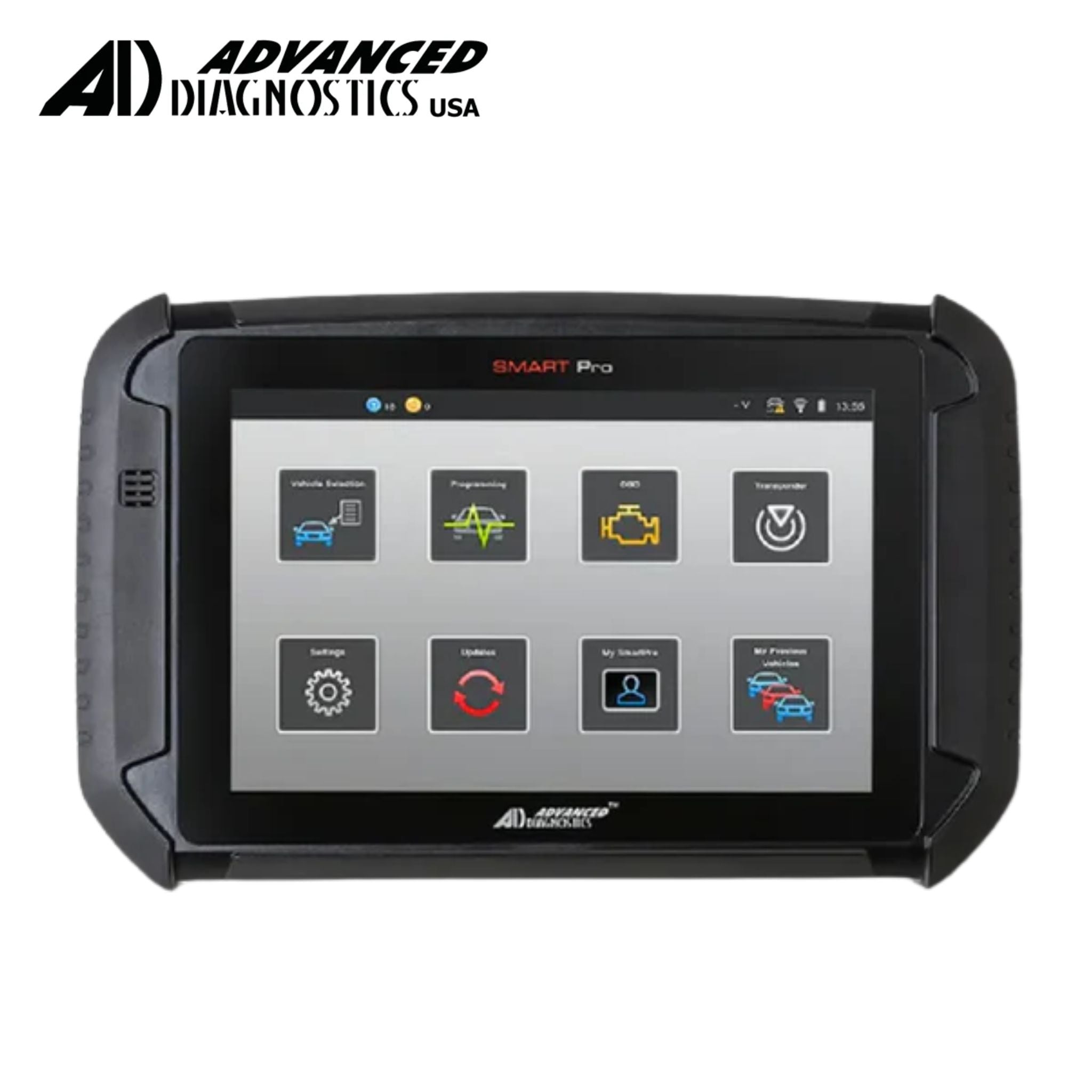

• Smart Pro Device
• USB Operating Manual
