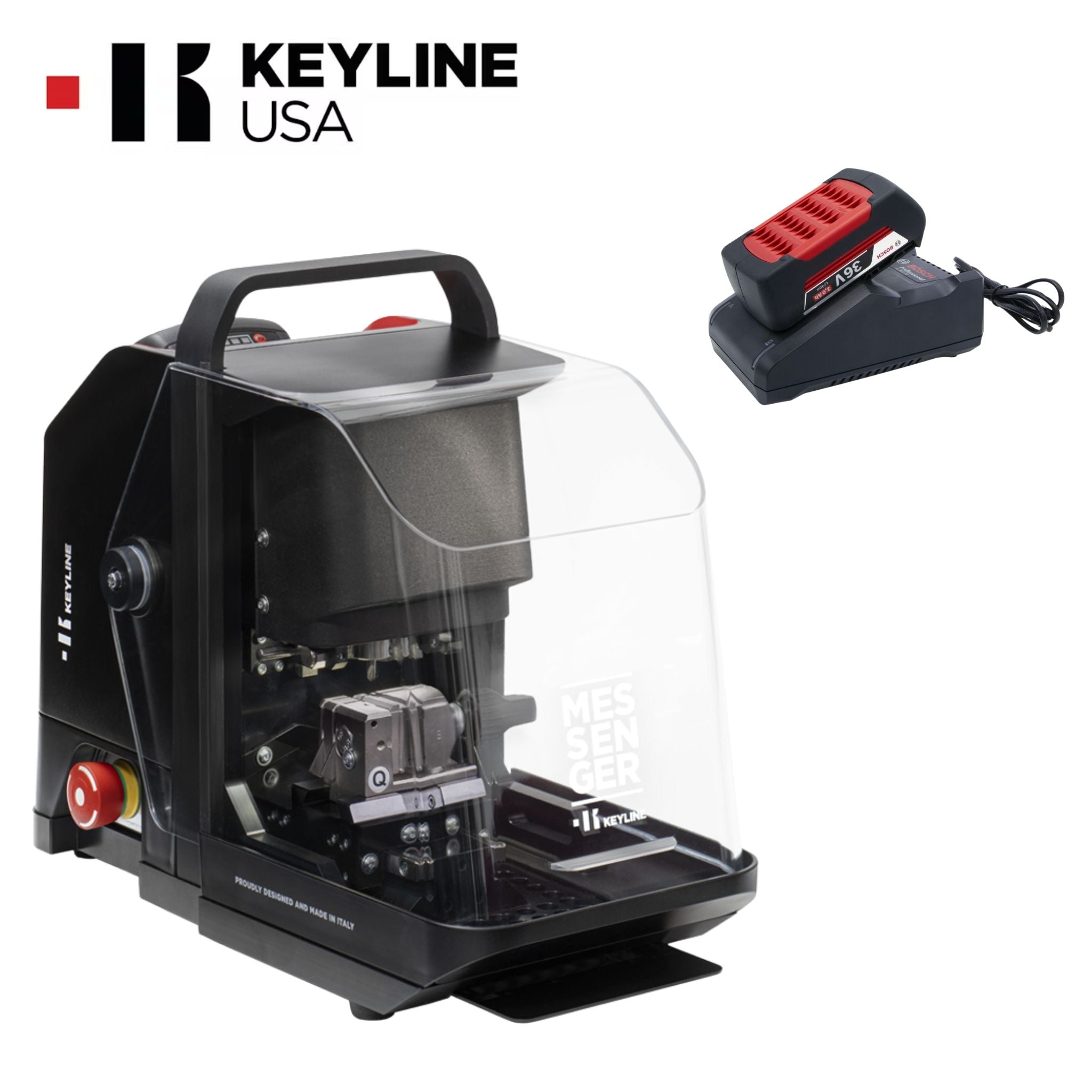

Keyline - Messenger Key Cutting Machine For Edge/Dimple/Laser Keys (With Battery and Charger)
Regular price
$5,250.00
🚚 Order within the next for delivery by 2 hours, 15 minutes26 Jul, 2025.
Product Info
Specifications

Basic Functions
- Integrated Lighting Equipped with LED lighting in the cutting bay to enhance visibility and precision during operation.
- Variable Speed Cutting Automatically adjusts cutter speed based on key material, with speeds up to 10,000 rpm on mains power and 7,500 rpm on battery.
- Portable Use Features a built-in rechargeable battery for mobile, off-site key cutting without the need for continuous external power.
- Mobile Operation Fully operable via the Keyline KDT App on Android devices using Bluetooth and a data connection, allowing portable and app-driven control.
- Automatic Calibration & Adjustment Performs automatic cutter alignment and key positioning through its app-controlled, motorized 3-axis system.
- Key Decoding Electrically reads and decodes the original key profile using contact-based technology to ensure precision duplication.
- Key Duplication Accurately duplicates laser, edge-cut, and dimple keys for a wide range of automotive applications.
Specs/Hardware
- Power Consumption: The device consumes around 120 watts during operation and drops to 6 watts in standby mode.
- Dimensions and Weight: Compact in size, measuring approximately 7.8 inches (width) × 15.5 inches (depth) × 12.2 inches (height). The machine weighs about 22 pounds (10 kilograms), balancing portability with stability.
- Key Reading and Lighting: Includes an electric contact system for key reading and decoding, with LED lighting in the cutting bay for enhanced visibility during operation.
- Precision Movement: The key cutting process is guided by stepper motors operating on a three-axis system, utilizing T-shaped screws and anti-backlash nuts to ensure precise, smooth motion.
- Cutting Mechanism: Equipped with a brushless motor providing reliable, low-maintenance performance. Cutter speeds reach up to 10,000 rpm when connected to mains power and reduce to 7,500 rpm on battery power, with variable speed settings to accommodate different key materials.
- Control and Connectivity: Managed via the Keyline KDT App compatible with Android devices (version 7 and above) and requires an active data connection. Bluetooth connectivity enables wireless communication between the machine and the app.
- Power and Battery: Operates on a 48V DC power supply with a 2.5 Amp current. It includes an integrated rechargeable battery allowing portable use, supported by a built-in adapter for seamless battery operation.
Package Contents
- Keyline Messenger Main Machine Unit

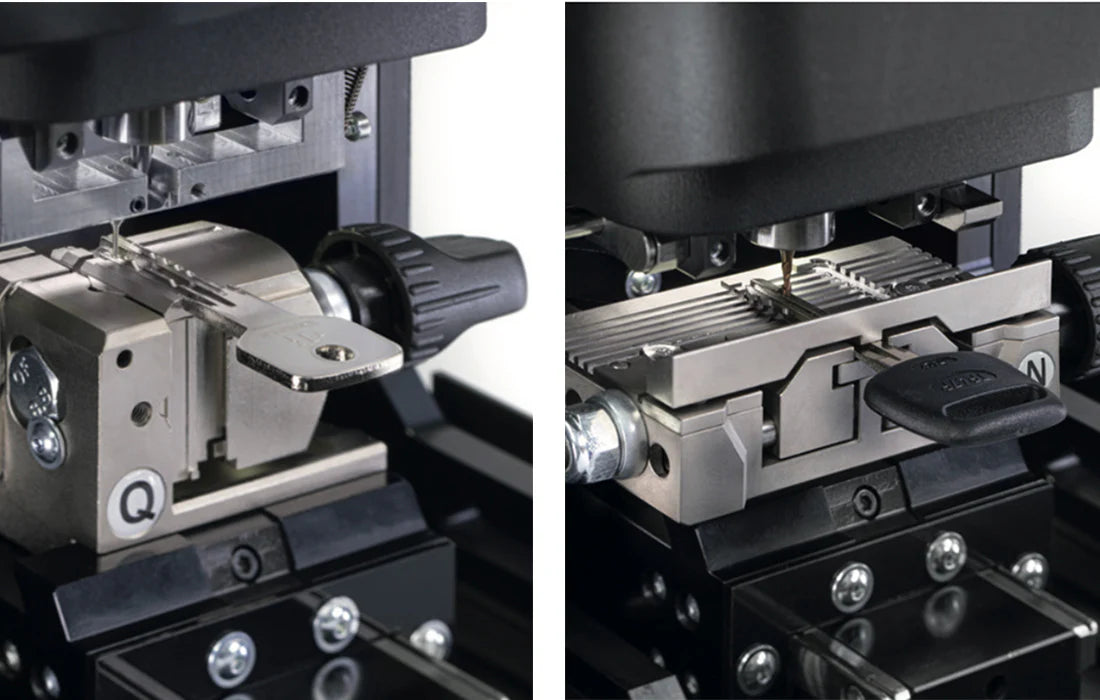

- Set of Clamps (including Q clamps for laser/dimple keys and N clamps for edge-cut keys)
- Carbide Cutters (V037 and V001)
- USB Charging and Power Cable
- Protective Carrying Case or Packaging
- Quick Start Guide / User Manual
