Xhorse

Xhorse - VVDI Key Tool Max Pro OBD Tool

In stock - 6 items available
SKU: XH-KTM-OBD
$380.80
🚚 Order within the next 2 hours, 15 minutes for delivery by 22 Aug, 2026.

Final Sale Disclaimer

This item is not eligible for return, exchange, refund, or store credit. Please review all product details and specifications before purchasing. View our full return policy here.

Locksmith Notes & Feedback

Submit programming tips, compatibility notes, locksmith insights, or report any inaccuracies in this product listing.

Product Info

Specifications

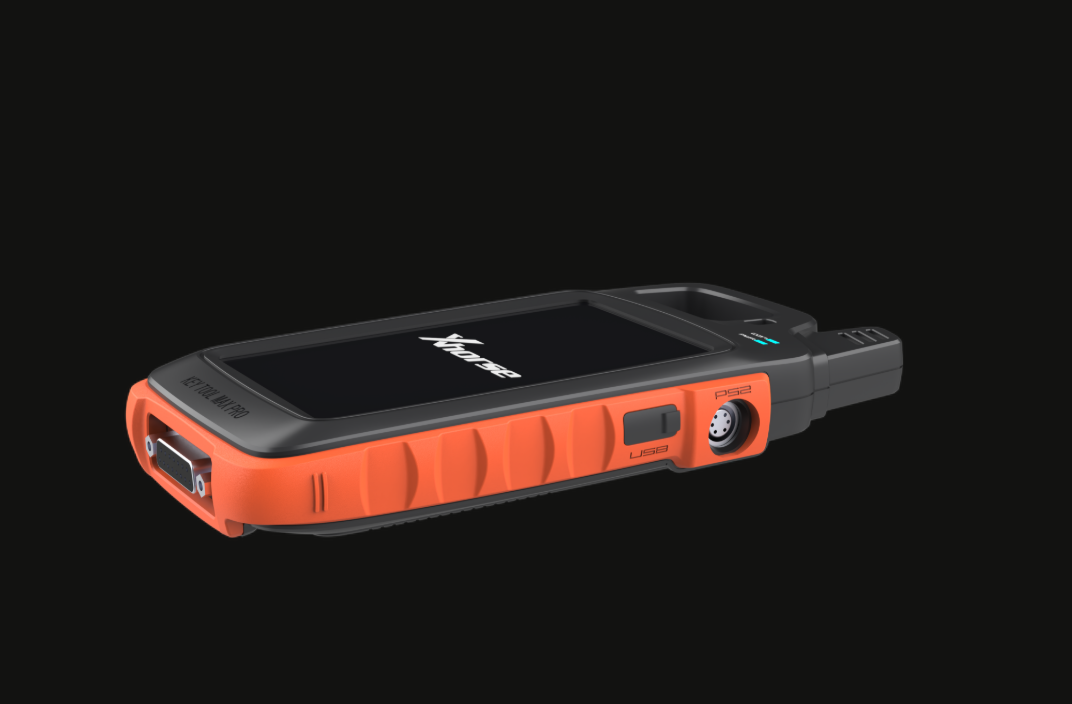

Xhorse VVDI Key Tool Max Pro combines functions of the Key Tool Max and Mini OBD Tool. Designed with locksmiths in mind, this device has all the staple features of Xhorse's VVDI Key Tool including, but not limited to, transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; Increasing your vehicle coverage immensely.

This new device comes complete with an OBD cable, allowing programming directly through the Key Tool Max Pro, rather than needing a separate programmer. It also means the device receives power over OBD so you don't need to worry about losing charge on the job!

Supporting image
Supporting image

Basic Functions

  • Detect Remote Battery/Voltage
  • Frequency Detection
  • Generate/Copy Garage Remotes
  • Identity/Copy ID Card
  • Unlock/Renew Remotes
  • Generate Special Function
  • Duplicate Transponders
  • Generate Transponders
  • Clone Remotes
  • Remote Generation
  • Service Reset
  • Immobilizer Programming

Other Functions

  • Built-in OBD Module: Allows direct connection to a vehicle's OBDII port without the need for an external Mini OBD Tool.
  • Voltage and Leakage Detection: Tests remote battery voltage (0V–36V) and detects leakage current (1μA–35mA) to ensure remote functionality.

Specs/Hardware

  • Battery: 3375mAh, 6+ hours use, 5+ days standby
  • Screen: 5-inch, 1280×720 resolution, >400 nits brightness
  • Processor: Quad-core CPU
  • Charging: 1.5A fast charge
  • Connectivity: Wi-Fi (2.4G/5G), Bluetooth 4.2 BLE
  • Memory: 1GB RAM / 8GB Storage
  • Built-in Modules: OBD, CAN FD, Remote voltage + leakage detection
  • Camera: 8MP rear camera

Package Contents

  • 1× User Manual
  • 1× USB cable
  • 1× Leakage detection cable
  • 1× Remote programming cable
  • 1× OBD to DB15 cable with light
  • 1× KEY TOOL MAX PRO device
