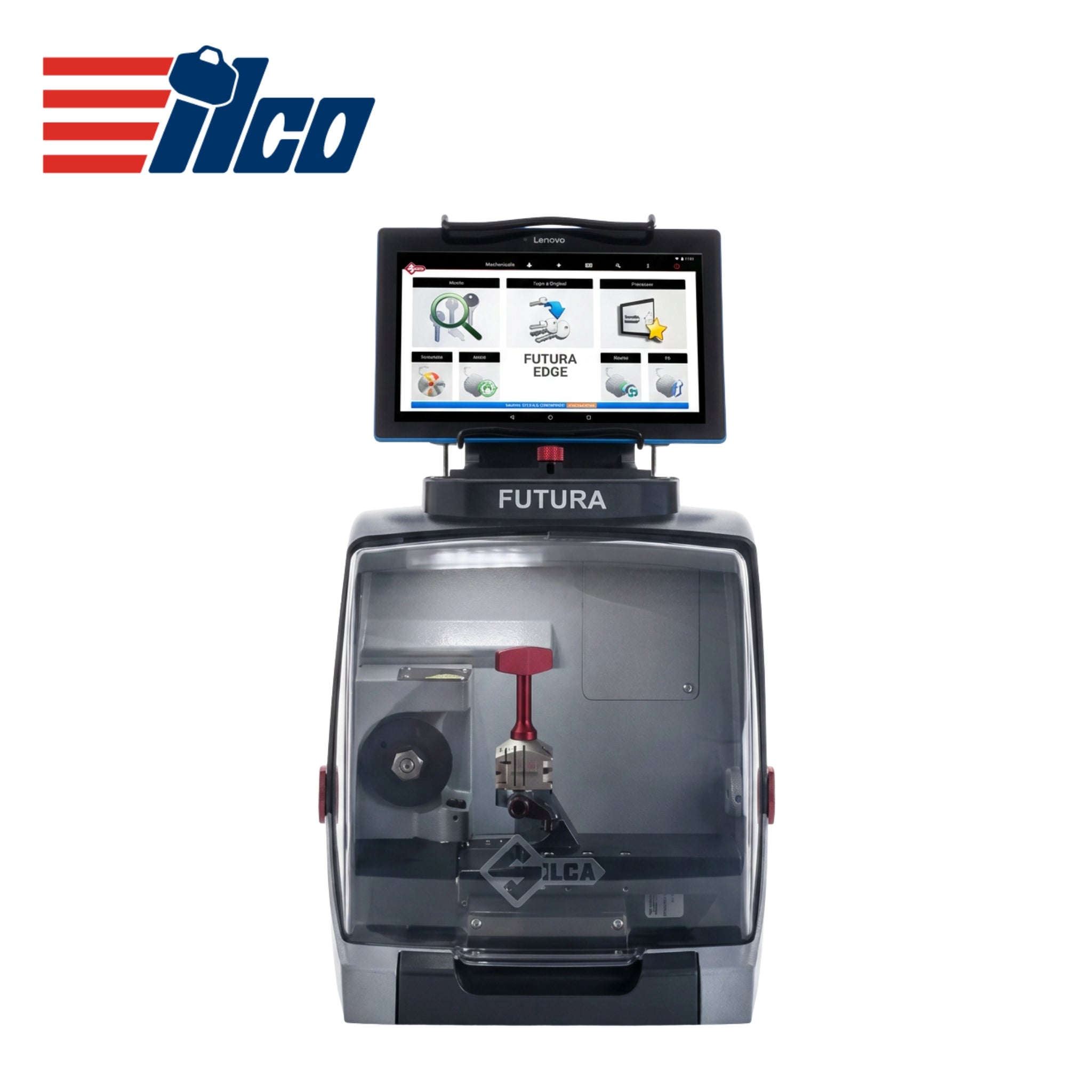

Built on the successful Futura platform, the Futura Edge is designed for edge-cut keys. The Futura Edge will easily duplicate by copying from the original key, by indirect code, or by direct code. Like the Futura Pro, this model is powerful enough for the professional and ideal for inexperienced users thanks to the software guided procedures. Controlled by a removable 10" (254mm) touch-screen tablet, the Futura Edge guides the user step-by-step in all key cutting operations. For example, in selecting the make, model and year for automotive keys, the choice of the right clamp, how to load the key, etc. The patented laser reading of the key profile makes the Futura the only electronic machine in the market that allows you to duplicate a flat key without first searching for the relevant cutting card.

Specifications:

Motors: 24V d.c., 5,5 Amp, 130W

Power Supply: 90/264V a.c - 50/60Hz

Tool Speed: 1500 RPM

Prismatic Cutter: D747276ZR

Movements: 2 axes (special bushings) driven by step motors on rectified roller guides

Carriage Runs: Axis X 1.18” (30mm) x Axis Y 1.97” (50mm)

Dimensions:

Width: 12.52” (318mm)

Depth: 16.26” (413mm)

Height:with table 20.47” (522mm)without table 13.38” (340mm)

Weight: 35.3 lbs. (16 kg)

Warranty: 2 years (machine and tablet)
