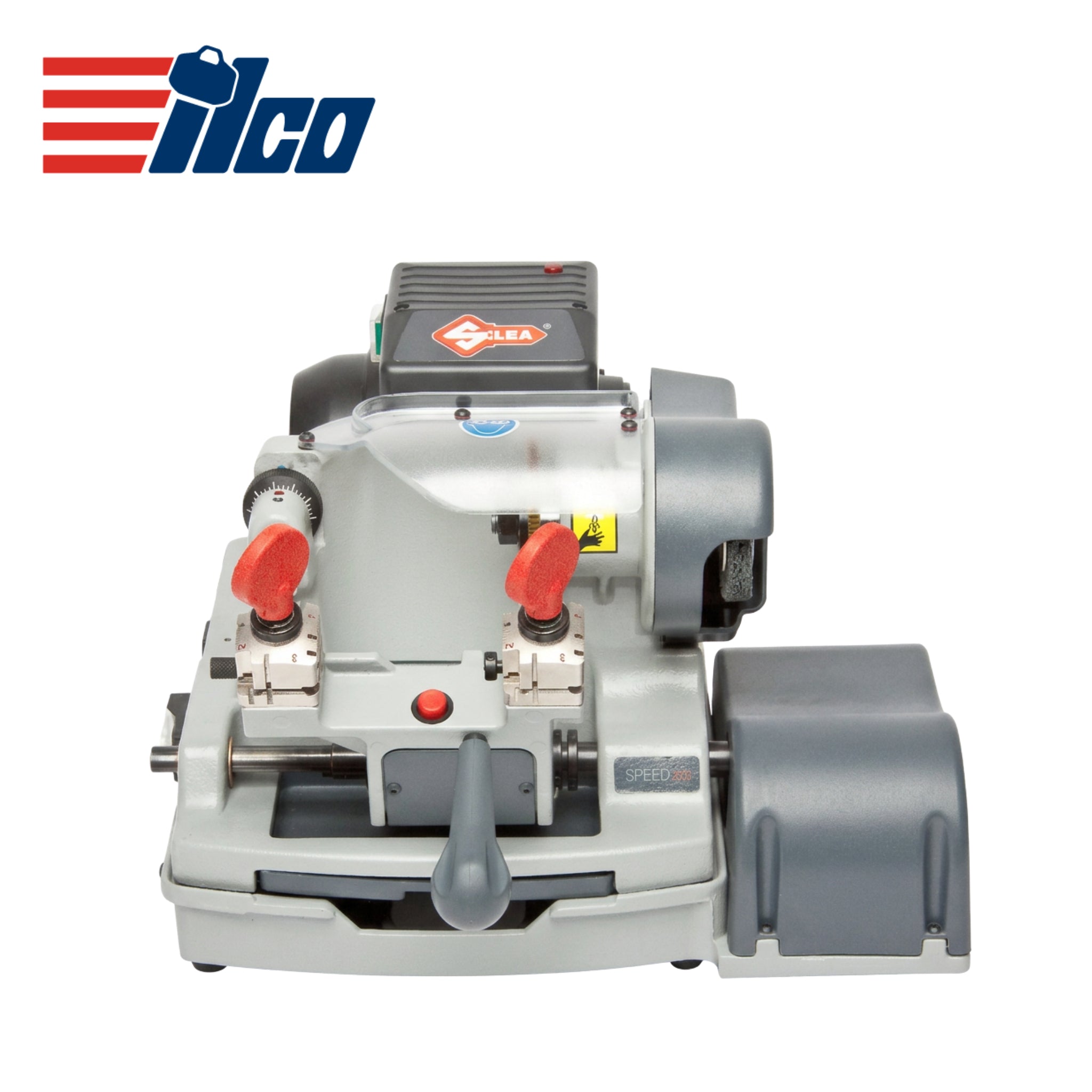

The Speed 040 is designed to duplicate edge cut automotive, residential and commercial keys.

The Speed 040 is primarily an automatic model that also provides the flexibility to be operated manually when desired to duplicate edge cut/flat style keys accurately. The Speed 040 is the perfect choice for the store or shop wanting the versatility to choose between automatic or manual operation. This versatile operational mode combined with the modern, open style and many additional features will provide users with years of service.

Technical Data

• Power Supply: 120V-60Hz
• Maximum absorbed power: 2.8 Amp, 200 Watt
• Cutter motor: single phase and speed
• Movements: by ball joint on rectified carriage
• Tool Speed: 1350 rpm
• Carriage Runs: 1.65” (42 mm)
• Cutter: TiN coated
• Brush: Nylon, 5/8” (15.87 mm) bristles
• Dimensions:Width: 19.3” (490 mm)Depth: 18.1” (460 mm)Height: 11.8” (300 mm)Weight: 44 lbs. (20 kg)
