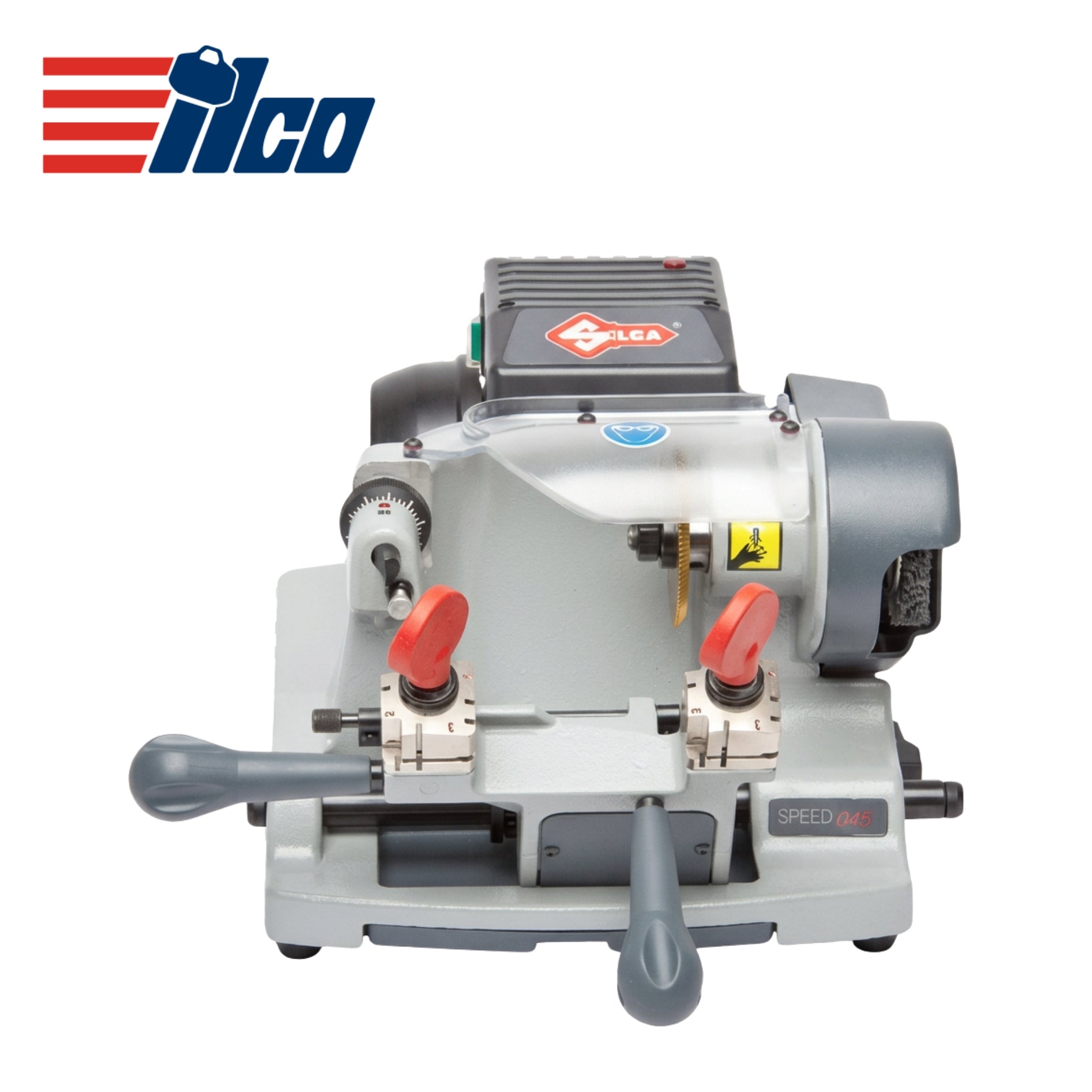

The Speed 045 is designed to duplicate edge cut automotive, residential and commercial keys.

Designed for duplicating edge cut/flat style keys, the Speed 045 offers accurate and economical key cutting. This manual model is an ideal basic duplicator for any key-cutting outlet. The Speed 045 is designed to duplicate edge-cut automotive, residential, and commercial keys and includes features that any user will readily appreciate. The modern, open style, safety details, and operational features make this model a choice model for a store or shop, and with the included mounting bracket; it is also an excellent choice for mobile use.

Technical Data

• Power Supply: 120V-60Hz Maximum Absorbed
• Power: 2.8 Amp, 200 Watt
• Cutter Motor: single phase and speed
• Movements: by ball joint on rectified carriage
• Tool Speed: 1350 rpm
• Carriage Runs: 1.65” (42 mm)
• Cutter: TiN coated
• Brush: Nylon, 5/8” (15.87 mm) bristles
• Dimensions: Width: 15.75” (400 mm) Depth: 18.1” (460 mm) Height: 9.8” (250 mm) Weight: 31 lbs. (14 kg)
